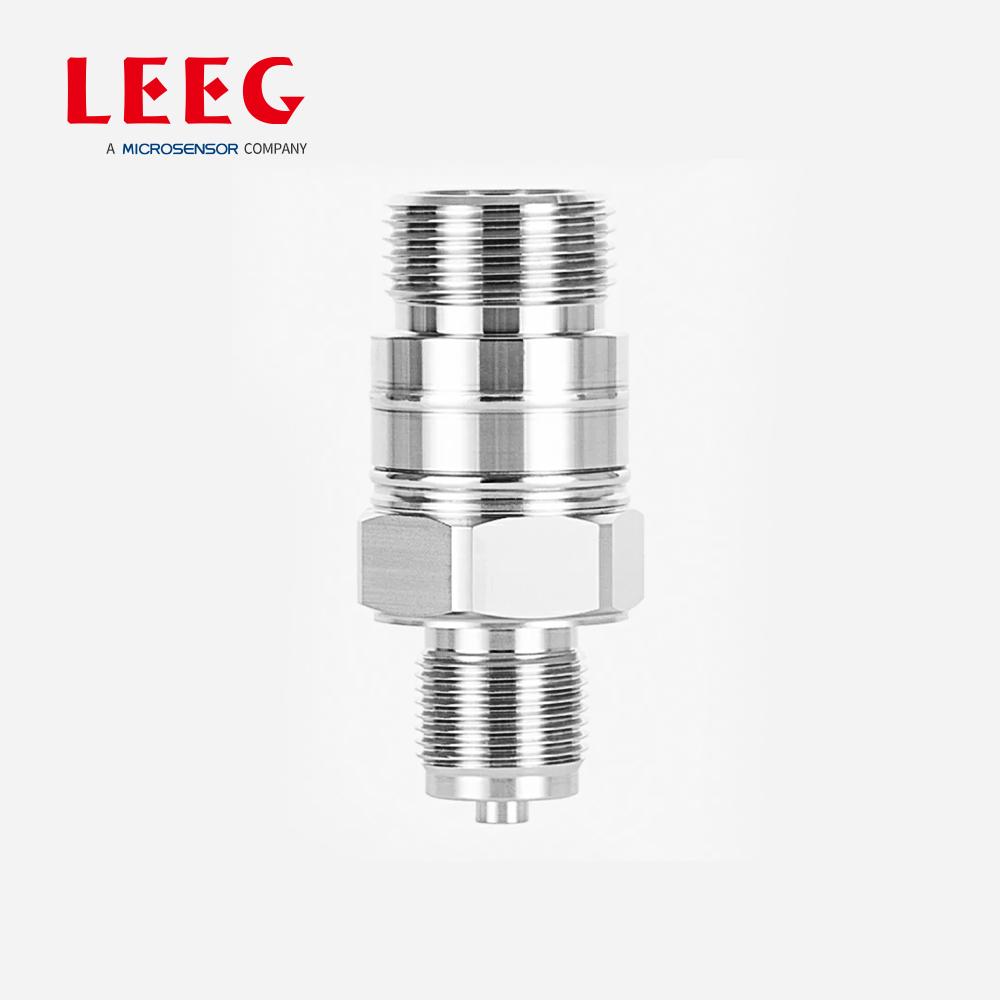

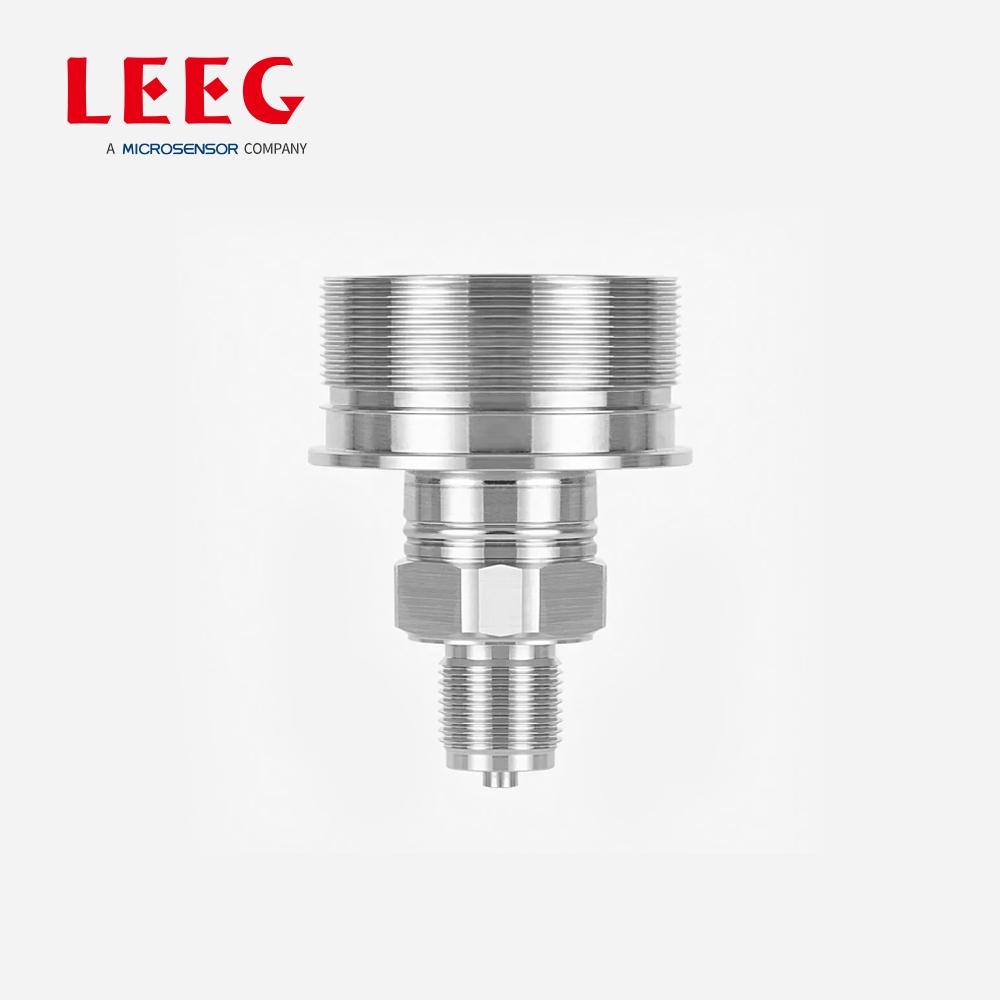

Monosilicon Pressure Sensor

LEEG, a subsidiary of MICROSENSOR, is a leading manufacturer of hygienic transmitters in China's food and pharmaceutical industries. The SP26 Monosilicon pressure sensor uses a highly stable silicon chip packaged in a 316L stainless steel substrate, the applied pressure is transmitted to the silicon chip through the stainless steel diaphragm and the internally sealed silicone oil, the silicon chip does not directly contact the measured medium. It’s an isolated structure, suitable for thousands of liquid media. It meets the requirements of explosion-proof, and the side exhaust of the gauge pressure product meets the needs of high-precision measurement. Discover more pressure sensor models and types of Micro Sensor.

Features
• High stability mono-silicon sensor die
• Voltage excitation
• Isolated explosion-proof structure, suitable for various media
• All stainless steel material and welded
• Hastelloy C, SS316L diaphragm material
• Built-in temperature sensor

Electrical Performance
• Power supply: 2.5-12VDC
• Electrical connection: 110mm silicone rubber soft wire
• Common mode voltage output: 50% of input (typical)
• Bridge resistance: 6kΩ±0.5kΩ
• Response time (10%-90%) : <2ms
• Insulation resistance: >100MΩ@500V DC
• Insulation strength: <5mA/500V AC
