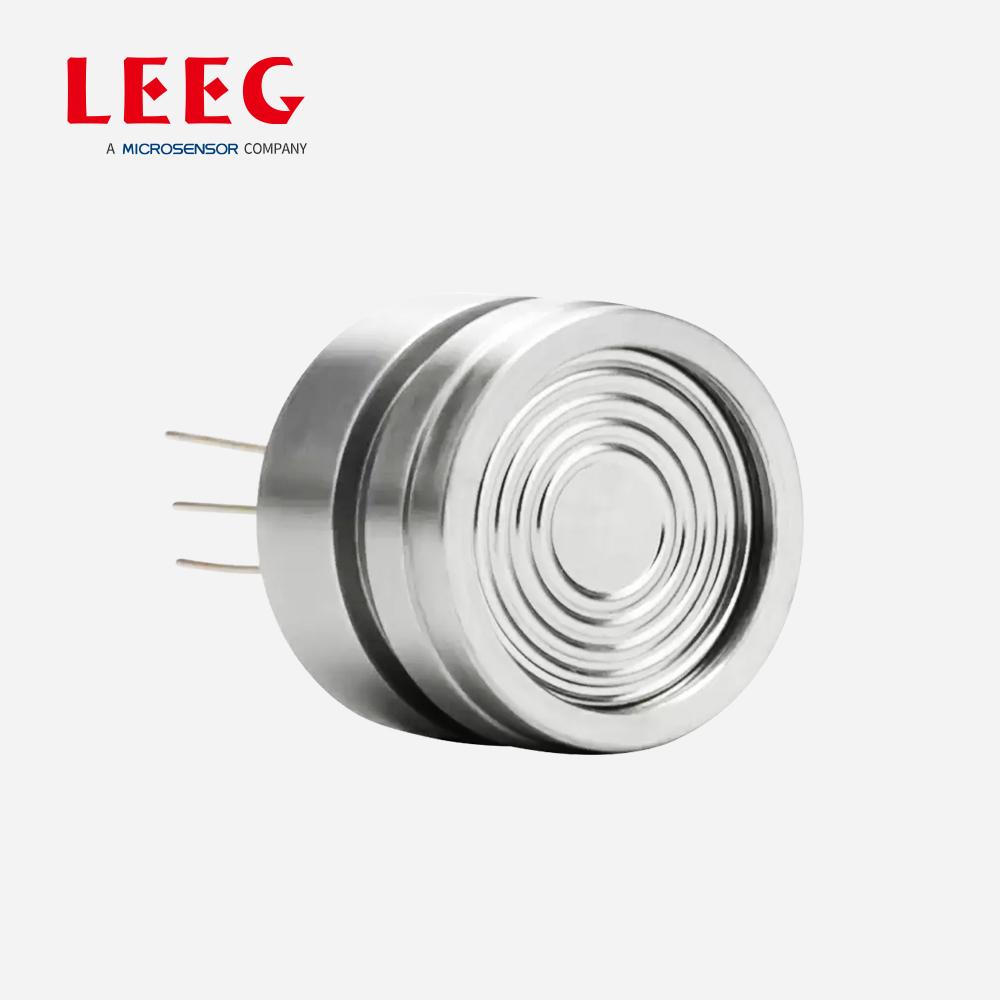

Monosilicon Pressure Sensor
SPH19S
- · High stability piezoresistive sensor die
- · Isolated construction, applicable to measuring various fluid
Used For
Pressure and Level Measurement for Gas and Liquid , Pressure Calibrators, Hydraulic Systems
Leave a MessageSPH19S
Used For
Pressure and Level Measurement for Gas and Liquid , Pressure Calibrators, Hydraulic Systems
Leave a MessageLEEG, a subsidiary of MICROSENSOR, is a leading manufacturer of hygienic transmitters in China's food and pharmaceutical industries. SPH19S is a piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable monosilicon sensor die. Stainless steel 316L housing with diameter Ф19mm. Wider temperature compensation and zero correction are calibrated by laser trimming techniques. The measured pressure is transmitted onto the silicon die through 316L diaphragm and inner sealed silicon oil, to transform the pressure to the electric signal. The sensor die doesn't contact the measuring medium directly, forming an isolated structure, suitable for various liquid media. Discover more pressure sensor models and types of Micro Sensor.
Features
• High stability piezoresistive sensor die
• Constant current and voltage excitation
• Isolated structure, suitable for various fluid
• 316L stainless steel
• Hastelloy C, Tantalum
• φ19mm standard/OEM sensing element
Electrical Performance
• Power supply: 0.8-2.0mA, 5-12VDC
• Electrical connection: φ0.5mm kovar pin or 100mm silicone rubber soft wire
• Common mode voltage output: 50% of input (typical)
• Bridge resistance: 6k (10kPa, Typical 3.3k ) Ω Ω
• Respond time (10%-90% ): < 1ms
• Insulation resistance: 500M /500VDC Ω
Image:
LEEG, a subsidiary of MICROSENSOR, is a leading manufacturer of hygienic transmitters in China's food and pharmaceutical industries. SPH19S is a piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable monosilicon sensor die. Stainless steel 316L housing with diameter Ф19mm. Wider temperature compensation and zero correction are calibrated by laser trimming techniques. The measured pressure is transmitted onto the silicon die through 316L diaphragm and inner sealed silicon oil, to transform the pressure to the electric signal. The sensor die doesn't contact the measuring medium directly, forming an isolated structure, suitable for various liquid media. Discover more pressure sensor models and types of Micro Sensor.
Features
• High stability piezoresistive sensor die
• Constant current and voltage excitation
• Isolated structure, suitable for various fluid
• 316L stainless steel
• Hastelloy C, Tantalum
• φ19mm standard/OEM sensing element
Electrical Performance
• Power supply: 0.8-2.0mA, 5-12VDC
• Electrical connection: φ0.5mm kovar pin or 100mm silicone rubber soft wire
• Common mode voltage output: 50% of input (typical)
• Bridge resistance: 6k (10kPa, Typical 3.3k ) Ω Ω
• Respond time (10%-90% ): < 1ms
• Insulation resistance: 500M /500VDC Ω
Read / Download our Datasheet in PDF
