Medium-Isolated Pressure Sensor
MPM281Pro
- · High overpressure
- · -1bar...0bar∼70mbar...35bar
Used For
Medical Instruments, Indusrial Process Control, Air Refrigeration or Compressors, Pressure Transmitters, Hydraulic System and Switch
Leave a MessageMPM281Pro
Used For
Medical Instruments, Indusrial Process Control, Air Refrigeration or Compressors, Pressure Transmitters, Hydraulic System and Switch
Leave a MessageMPM281Pro is a medium isolation pressure sensor with high accuracy. It uses a highly stable diffusion silicon chip and is housed in a 316L stainless steel structure with a diameter of Ф19mm. This product is also equipped with an external laser trimming compensation board, which can accurately adjust the temperature error and zero output. Besides, the gain resistance can be fine-tuned to achieve a ne tFS output signal of 3.012V ±1%.
The product is widely used in applications where pressure measurement is critical. As a vacuum pressure sensor, it enhances the accurate monitoring in the field of vacuum measurement. In these applications, it can deliver excellent performance and stability to meet the high demands of customers. Click here to get more types of pressure sensors.
Features
• Measurement range: 0bar~0.07bar…35bar
• Nonlinearity: ±0.1%FS
• Gauge, Absolute
• Constant current power supply
• Wide compensated temperature range of -20℃ ~85℃
• Long-term stability: ± 0.1%FS/Year
Image:
MPM281Pro is a medium isolation pressure sensor with high accuracy. It uses a highly stable diffusion silicon chip and is housed in a 316L stainless steel structure with a diameter of Ф19mm. This product is also equipped with an external laser trimming compensation board, which can accurately adjust the temperature error and zero output. Besides, the gain resistance can be fine-tuned to achieve a ne tFS output signal of 3.012V ±1%.
The product is widely used in applications where pressure measurement is critical. As a vacuum pressure sensor, it enhances the accurate monitoring in the field of vacuum measurement. In these applications, it can deliver excellent performance and stability to meet the high demands of customers. Click here to get more types of pressure sensors.
Features
• Measurement range: 0bar~0.07bar…35bar
• Nonlinearity: ±0.1%FS
• Gauge, Absolute
• Constant current power supply
• Wide compensated temperature range of -20℃ ~85℃
• Long-term stability: ± 0.1%FS/Year
Read / Download our Datasheet in PDF
Download
- Related Products
- Related Accessories
-
-
-
-
Voltage Output Pressure Sensor
Range: -1bar…-0.35bar ~ 0bar ~0.35bar…700bar
Details
No need for re-calibration for users, high precision
Customizable dimensions
Relate Solutions
-

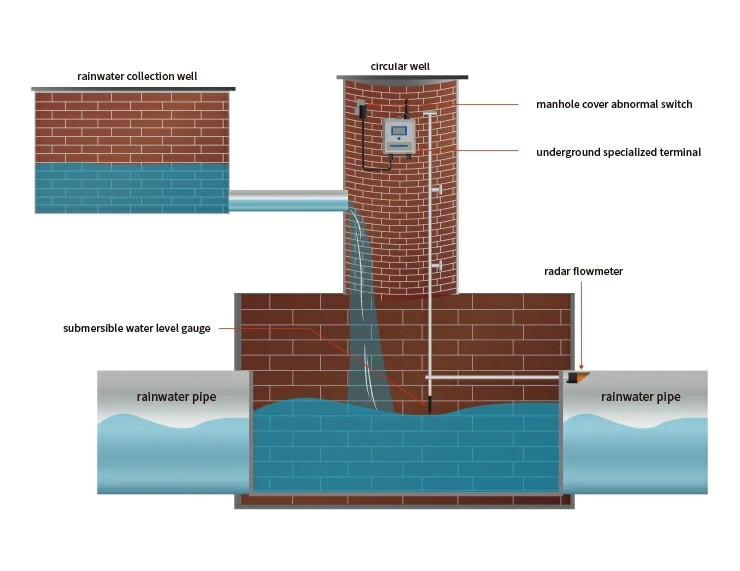

Sump Well Level and Flow Monitoring
Sump wells are important facilities for convenient daily inspection, prevention, and dredging of drainage pipe blockages. By deploying monitoring instruments at the bottom of the well, a comparison of drainage volume and rainfall is made, allowing for the prediction of flooding points and drainage times under real-time changing drainage conditions. When the water level data exceeds the preset warning value, a timely alarm is given, effectively preventing urban flooding.
more info... -
Pressure, Level, and Flow Monitoring in Pressurized Pump Station Systems
Various monitoring instruments are installed in the water storage tanks, pools, and pipelines of the water supply pump station to monitor the operation of the facilities in real-time. Through advanced cloud computing and big data technology, production data is integrated for timely alarms and early warnings.
more info... -
Printing Equipment Monitoring
In an inkjet printer, the continuous inkjet state of the ink nozzles ensures print quality. Normal ejection of ink in the nozzle requires continuous application of pressure. The pressure detection component monitors and controls the pressure. High-precision, high-sensitivity pressure sensors control the accurate delivery of ink during printing.
more info... -
Automated Process Control in Chemical Industry
Accurate monitoring and control of pressure, level, temperature, and flow are essential in the chemical industry to ensure product quality and production safety. In-depth monitoring solutions from Micro Sensor offer an extensive range of cutting-edge sensors and smart control instruments that can precisely and in real-time monitor these crucial specifications. Data integration and analytics are also used to optimize the production process.
more info...
