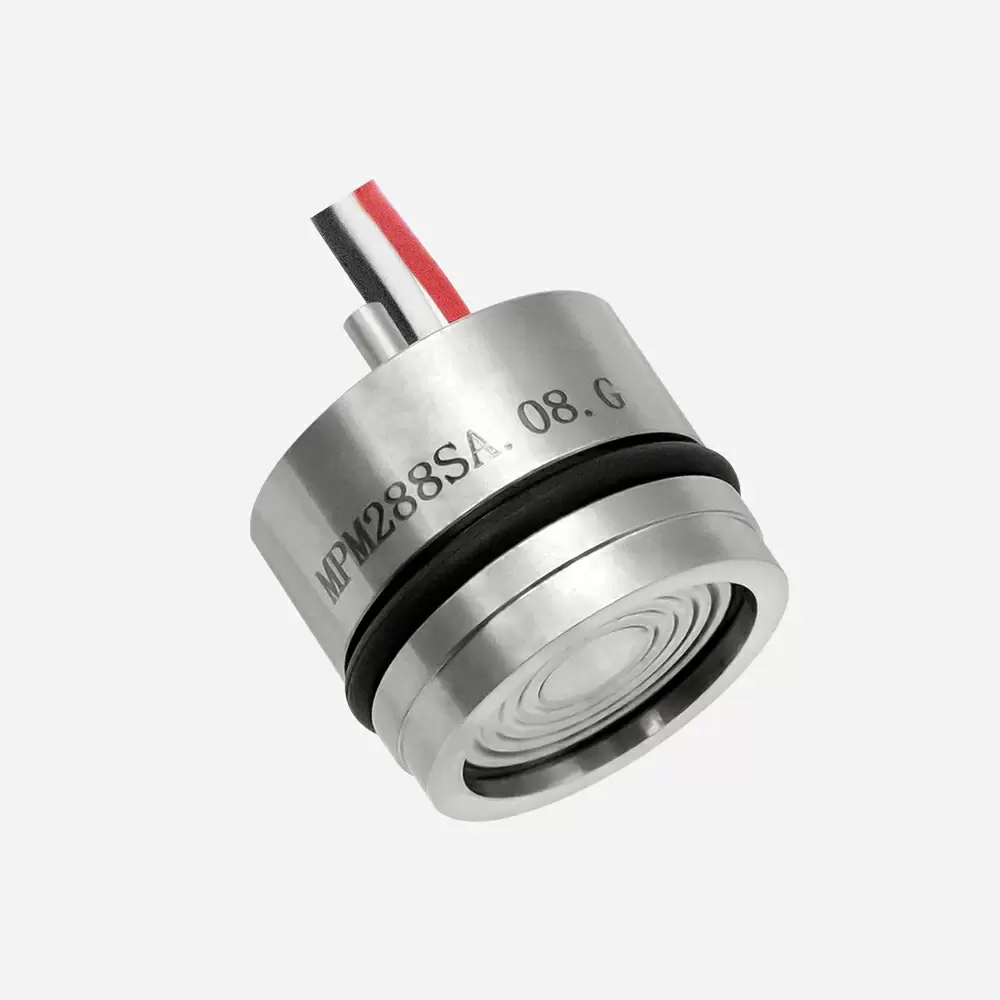

Voltage Output Pressure Sensor
MPM288SA
- · Range: -1bar…-0.35bar ~ 0bar ~0.35bar…700bar
- · No need for re-calibration for users, high precision
- · Customizable dimensions
Used For
Gas and Liquid Pressure Measuring, Level Measurement, Flow Meter Companion Device
Leave a MessageMPM288SA
Used For
Gas and Liquid Pressure Measuring, Level Measurement, Flow Meter Companion Device

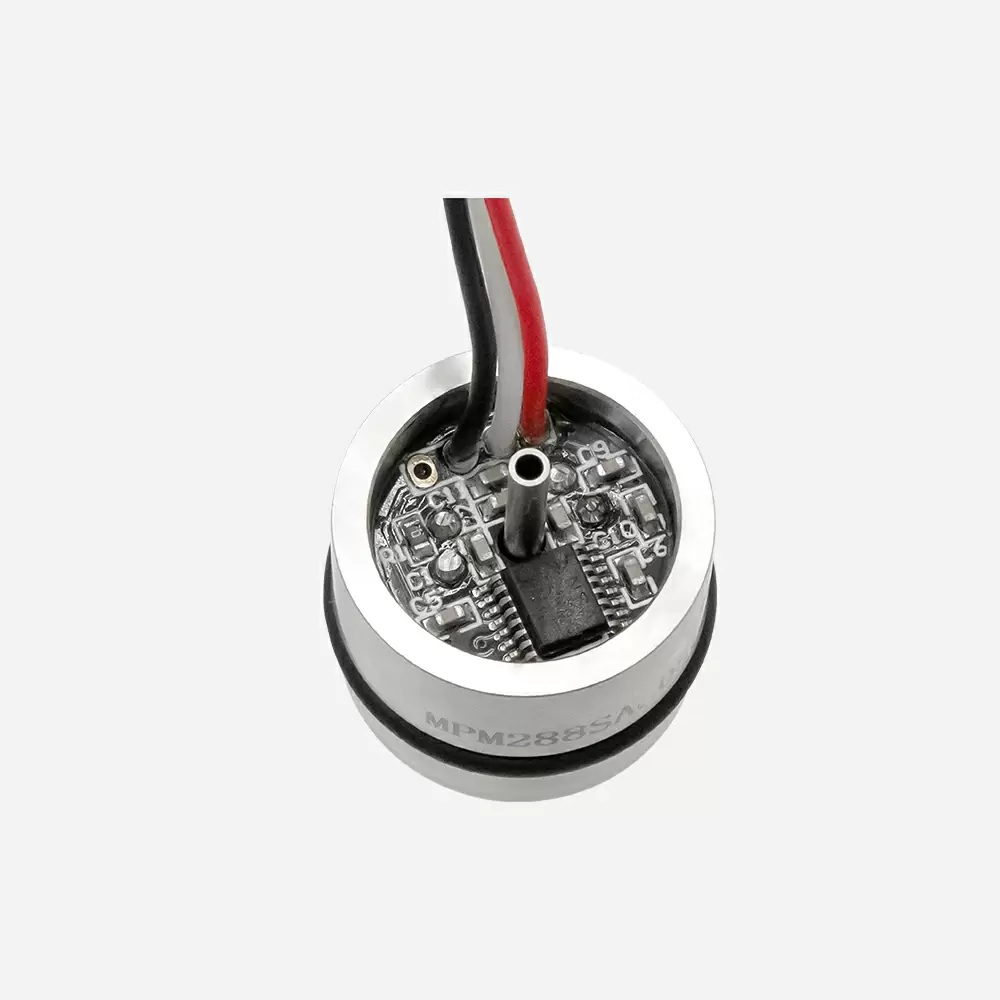

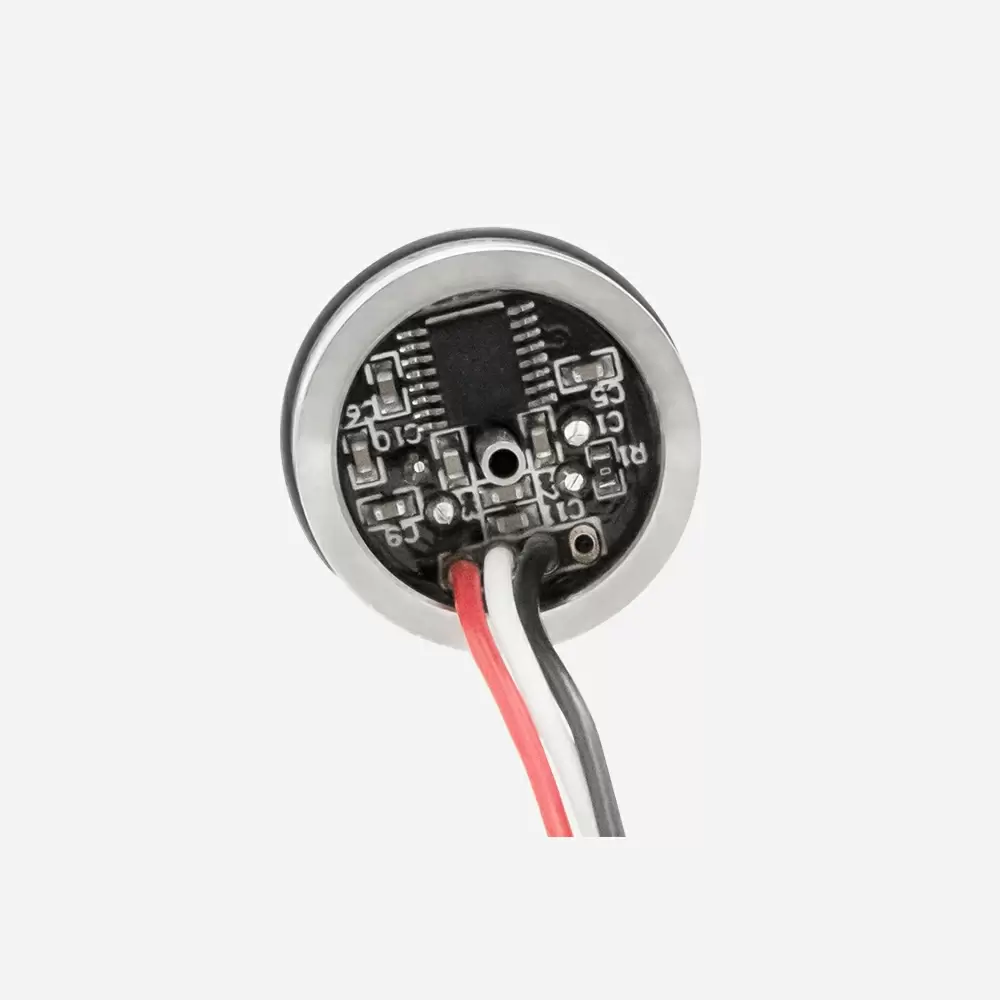

Leave a MessageMPM288SA voltage output pressure sensor is a pressure sensitive element with a standard voltage output signal. The product PCBA circuit board consists of a dedicated conditioning chip (ASIC). Dual-channel 24-bit ADC ensures signal high resolution. The pressure measuring device can be assembled or welded to various pressure connections. The shape, assembly dimensions, and sealing method of MPM288SA analog pressure sensor are highly interchangeable with similar international products.
Feature
• φ19mm standard outer diameter
• Mature production technology and signal conditioning technology
• Suitable for on-site pressure measurement instruments
• High interchangeability
Image:
MPM288SA voltage output pressure sensor is a pressure sensitive element with a standard voltage output signal. The product PCBA circuit board consists of a dedicated conditioning chip (ASIC). Dual-channel 24-bit ADC ensures signal high resolution. The pressure measuring device can be assembled or welded to various pressure connections. The shape, assembly dimensions, and sealing method of MPM288SA analog pressure sensor are highly interchangeable with similar international products.
Feature
• φ19mm standard outer diameter
• Mature production technology and signal conditioning technology
• Suitable for on-site pressure measurement instruments
• High interchangeability
Read / Download our Datasheet in PDF
Download
