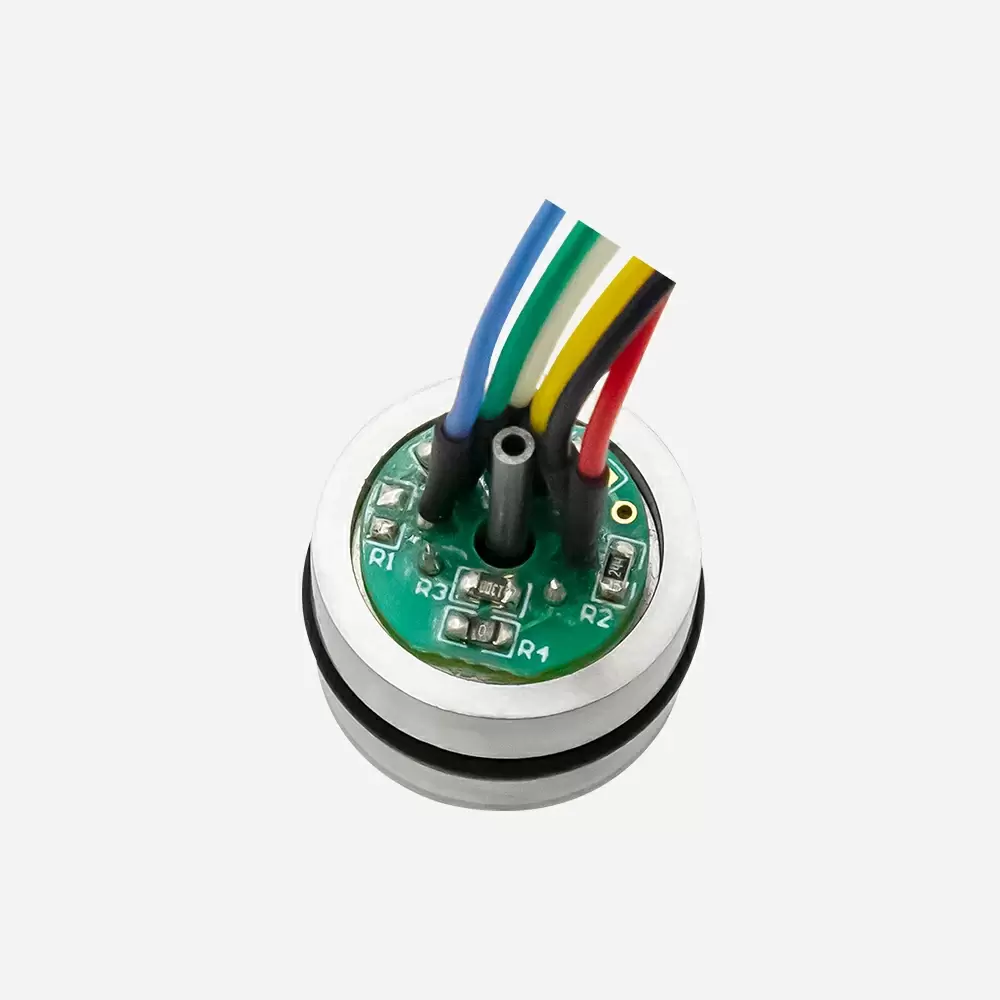

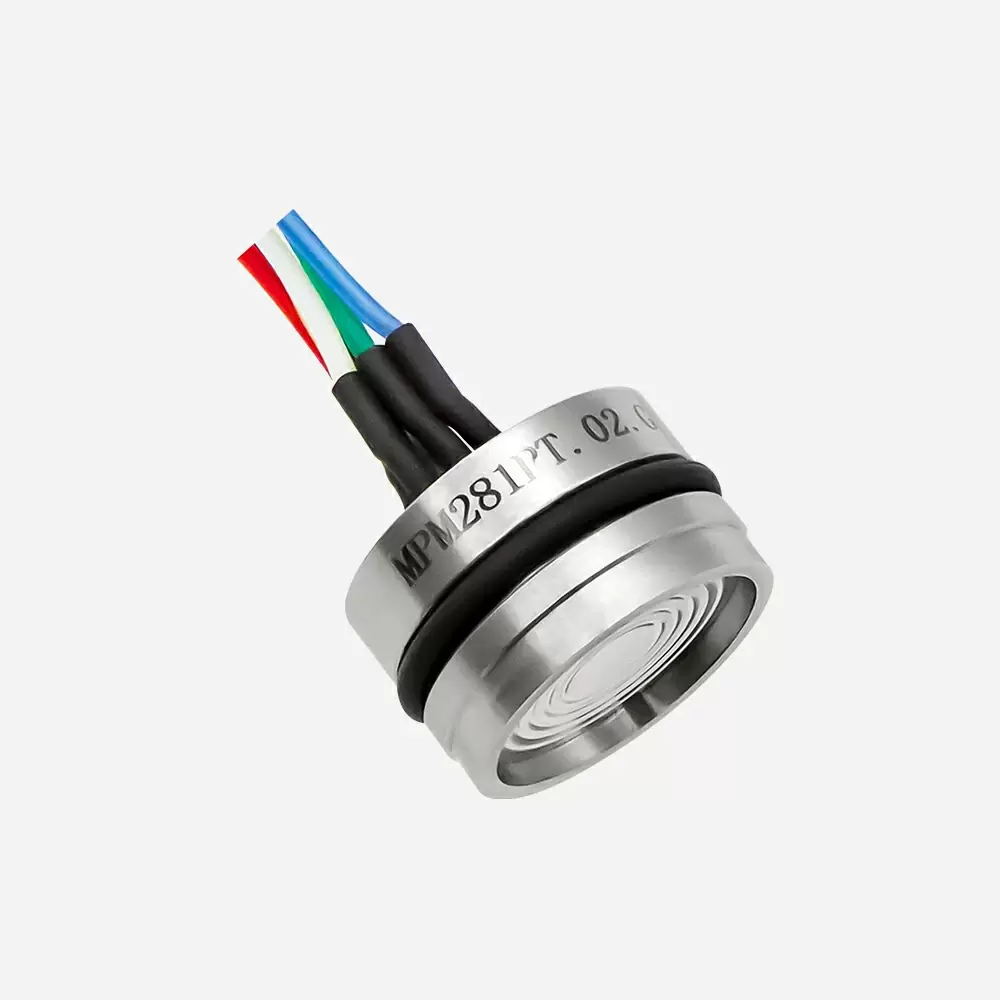

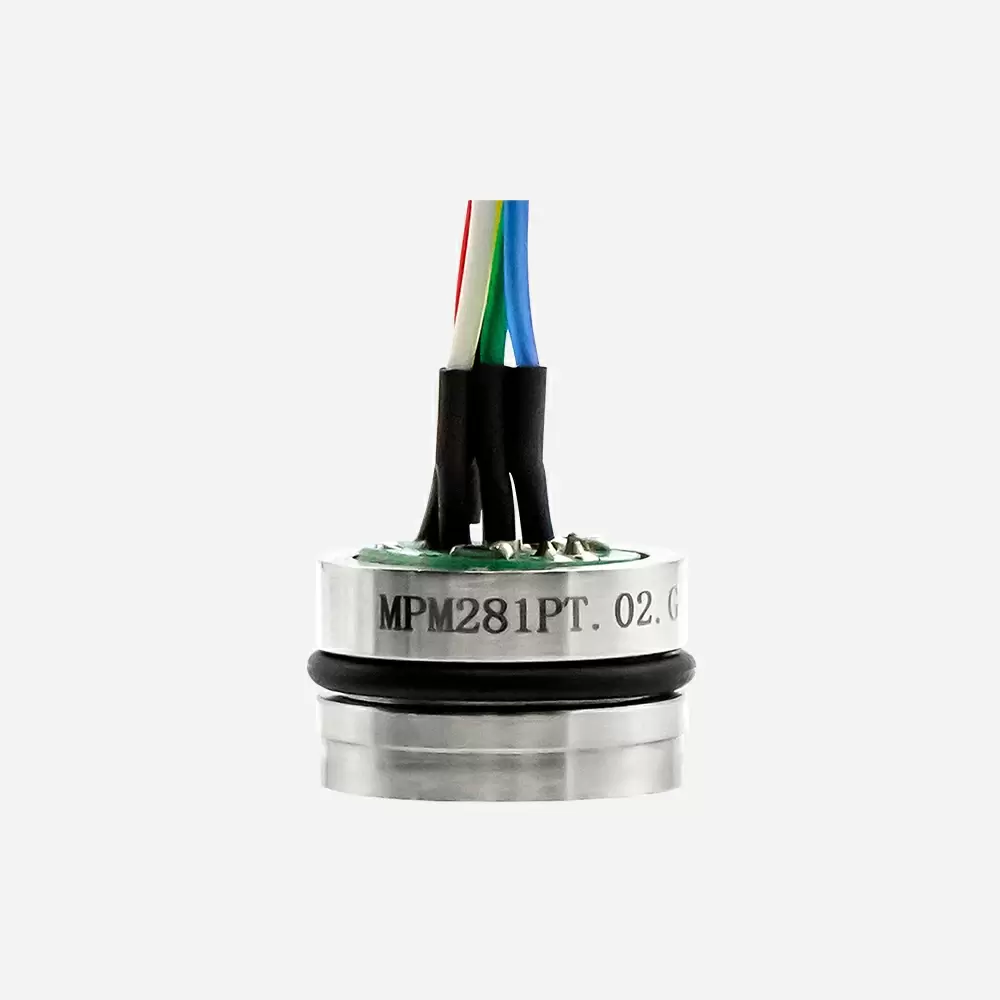

Pressure and Temperature Sensor
MPM281PT
- · Pressure & Temperature dual output
- · 0bar~0.35bar…1000bar
Used For
Industrial Process Control, Hydraulic System and Switches, Refrigeration Equipment and Air Conditioning Systems, Medical Oxygen Pressure Measurement
Leave a MessageMPM281PT
Used For
Industrial Process Control, Hydraulic System and Switches, Refrigeration Equipment and Air Conditioning Systems, Medical Oxygen Pressure Measurement
Leave a MessageMPM281PT pressure and temperature sensor is a sensitive element for integrated pressure and temperature measurement. The highly reliable diffused silicon pressure-sensitive chip and PT100 temperature measuring element meet the needs of various industrial occasions. The consistency of each batch of products under strict pressure and temperature characteristic test. The long-term temperature stability error of the atmospheric pressure sensor is ≤0.05%/year and the temperature accuracy can reach ±0.5°C. The integration of temperature & pressure can be applied in many scenarios, such as industrial process control, oil and gas transportation monitoring, etc.
Features
• Temperature and pressure integration
• Stainless steel 316L shell, diameter Ф19mm
• Highly integrated structure
• High stability and high precision imported diffused silicon chip
Image:
MPM281PT pressure and temperature sensor is a sensitive element for integrated pressure and temperature measurement. The highly reliable diffused silicon pressure-sensitive chip and PT100 temperature measuring element meet the needs of various industrial occasions. The consistency of each batch of products under strict pressure and temperature characteristic test. The long-term temperature stability error of the atmospheric pressure sensor is ≤0.05%/year and the temperature accuracy can reach ±0.5°C. The integration of temperature & pressure can be applied in many scenarios, such as industrial process control, oil and gas transportation monitoring, etc.
Features
• Temperature and pressure integration
• Stainless steel 316L shell, diameter Ф19mm
• Highly integrated structure
• High stability and high precision imported diffused silicon chip
Read / Download our Datasheet in PDF
Download
